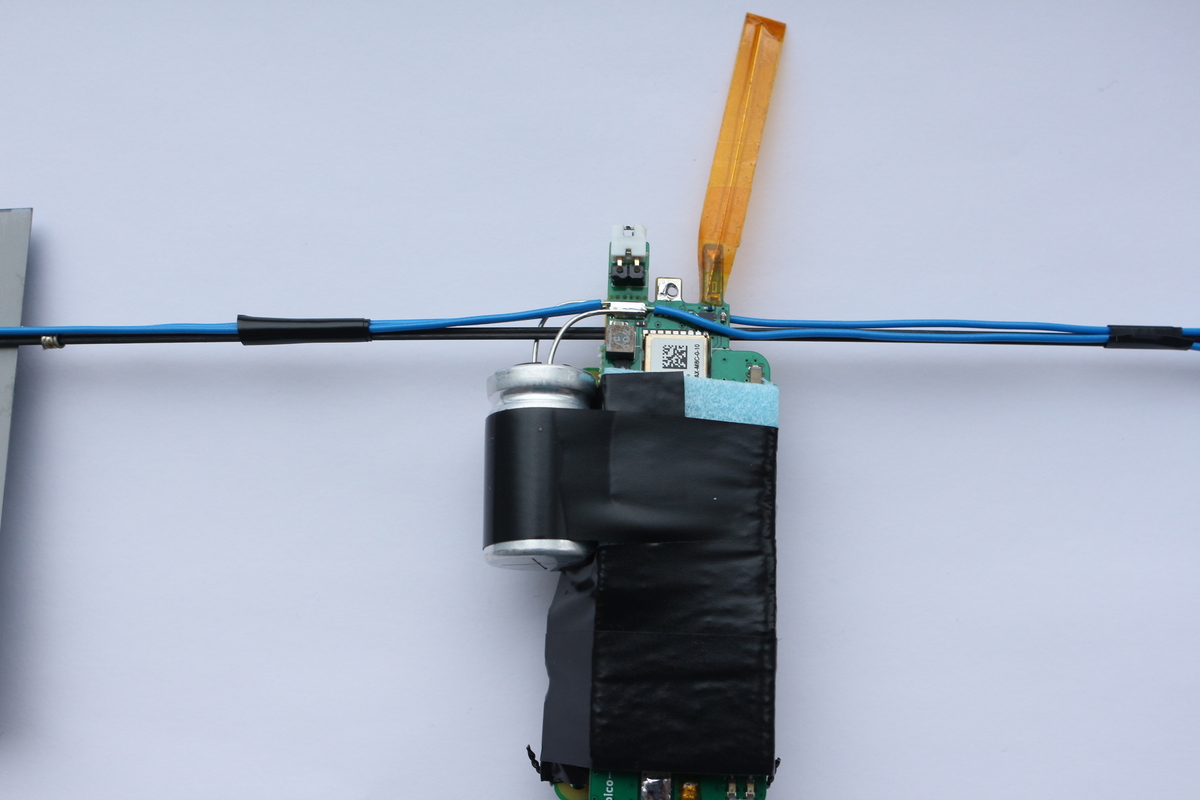

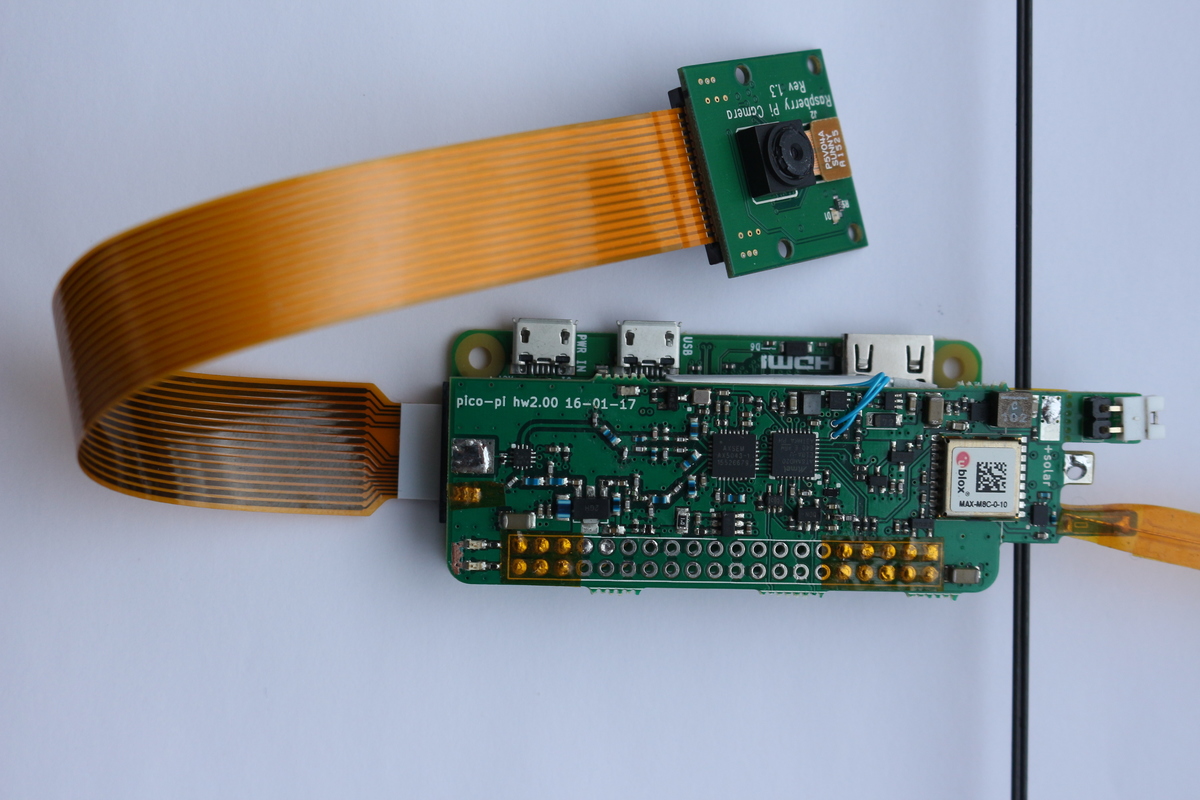

UBSEDS25 is a superpressure balloon launched by our student society. It carries a microcontroller and Raspberry Pi Zero to record telemetry and take pictures. These are then transmitted using ISM band and Amateur radio.

The superpressure balloon aims to float at a steady altitude of about 13km. Previous flights have lasted several months at this altitude.

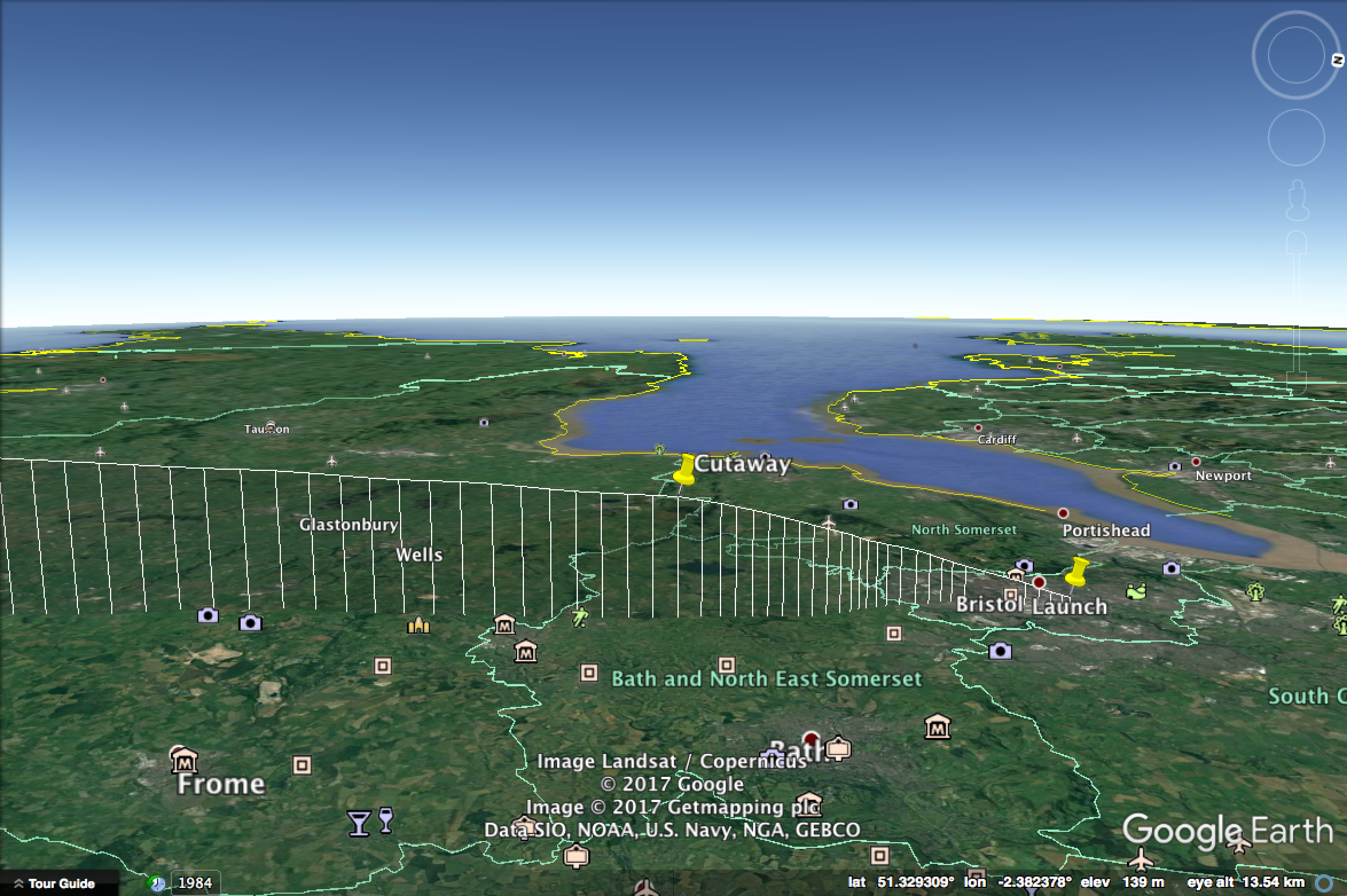

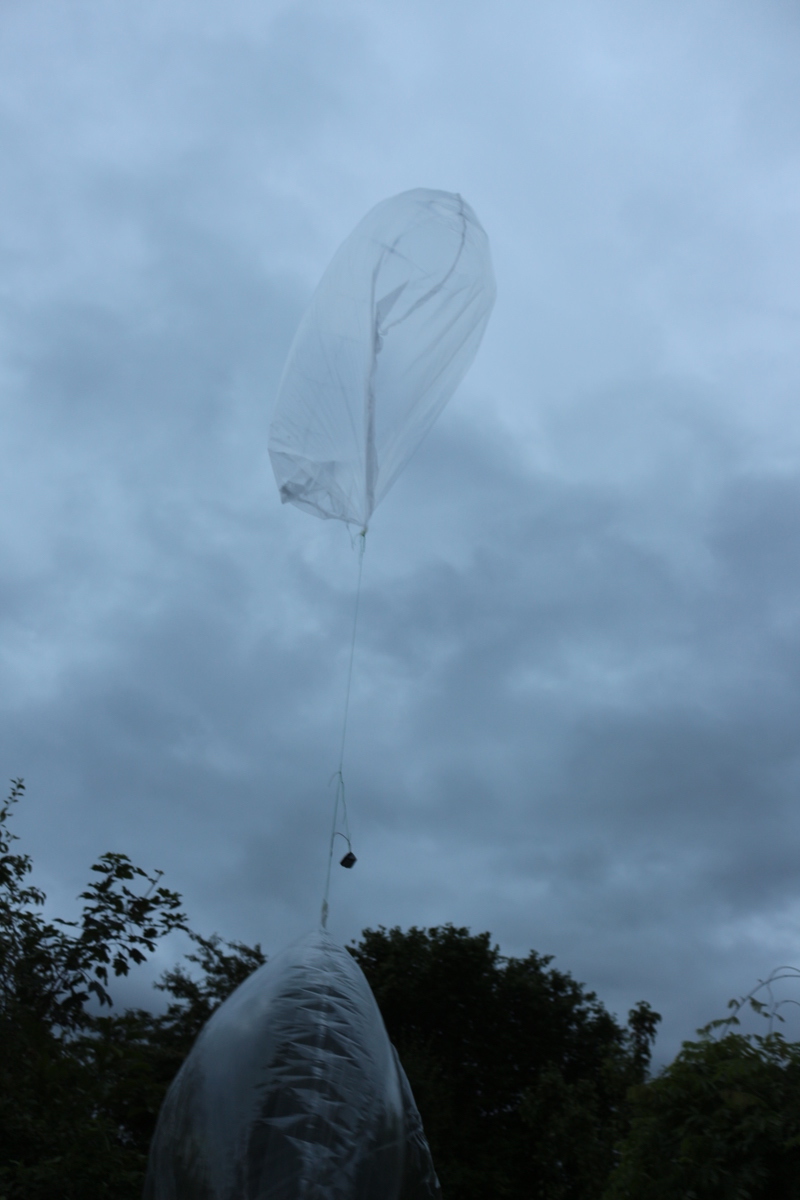

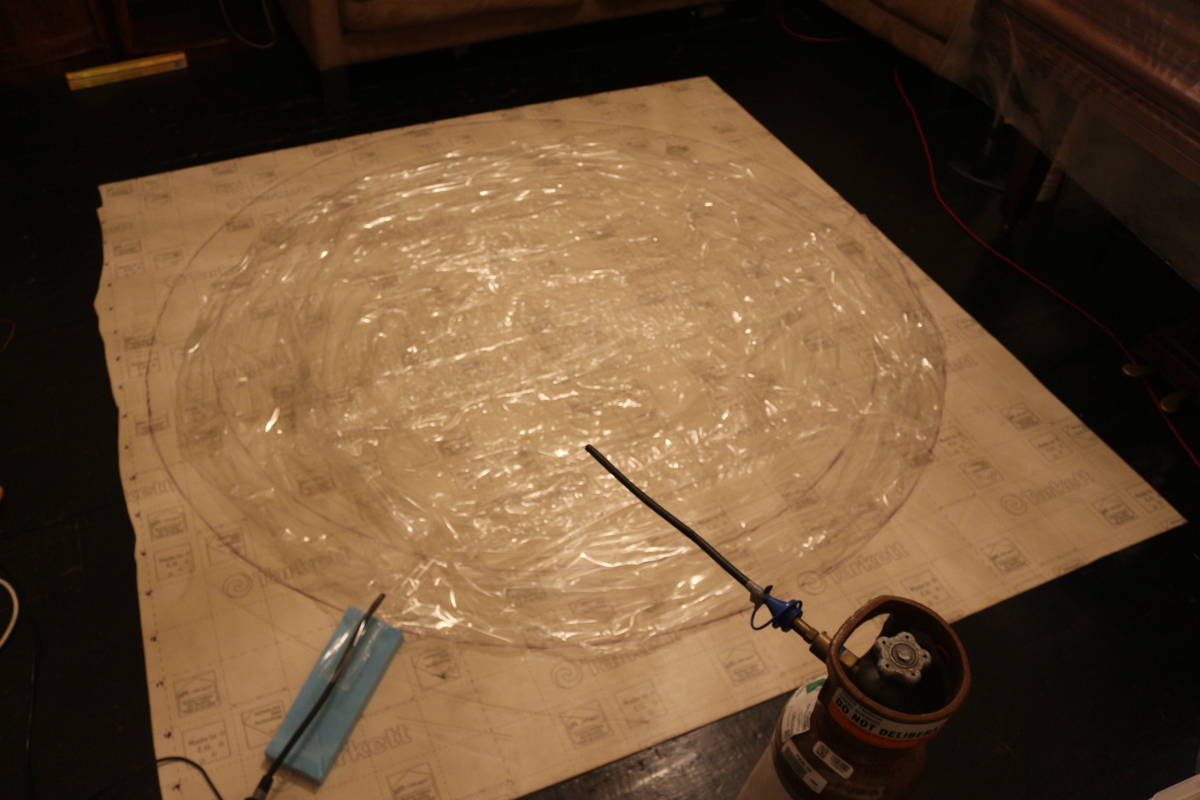

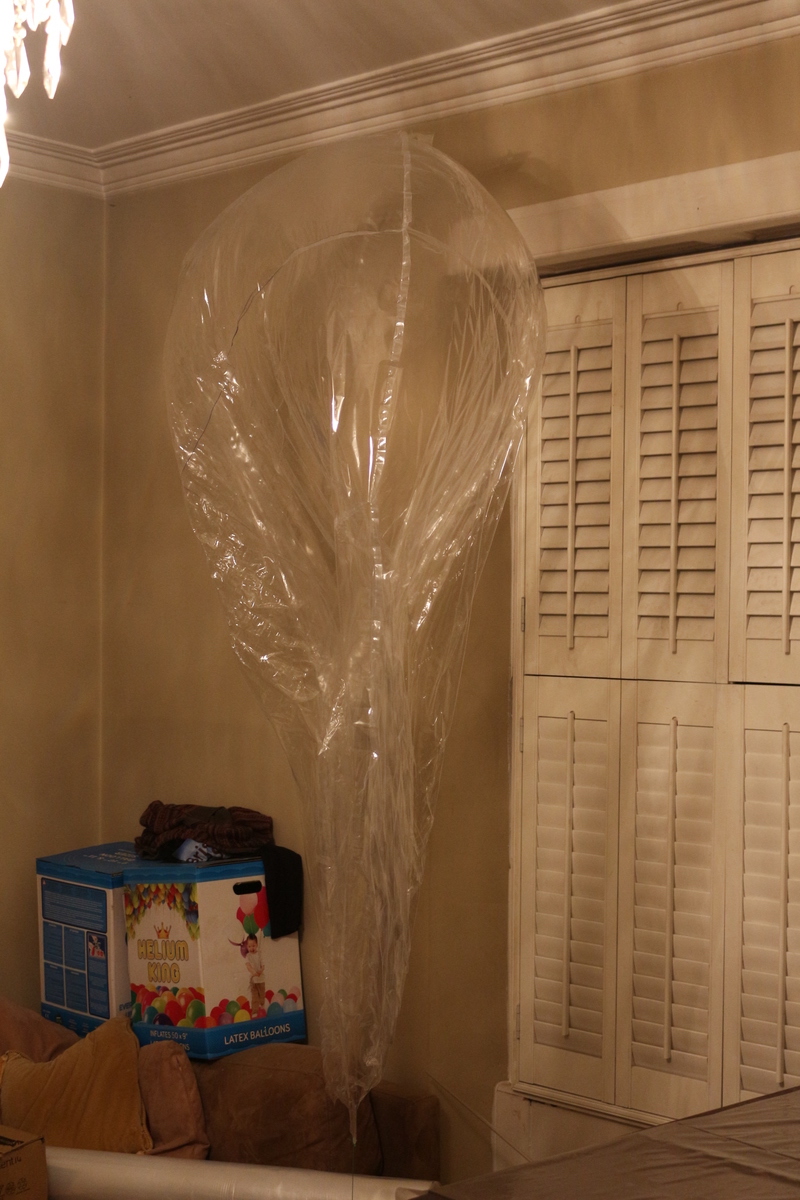

The UBSEDS25 balloon was built from 50 micron thick PA-EVOH-PE multilayer film and was 1.9 meters in diameter. This size means the longest axis of the balloon and payload combined is more than 2 meters, and so a NOTAM was required and obtained for the launch. This launch was unusual as the conditions were cloudy at launch. A 2nd “tow balloon” was used to pull the main balloon through the cloud deck. This tow balloon was timed to disconnect at 05.55 BST, and this successfully occurred at an altitude of 4.6km (15,000 ft).

View Images Here

Instructions for 300 baud RTTY

Mass Table

The mass that can be carried by the balloon is limited. For more detail about the balloon design see Richard’s talk at the UKHAS Conference 2016.

This table does not include details of the tow balloon. See the section below.

The flight achieved a stable altitude of 12.8 km 2.5 hours after launch. The free lift was reduced to about 20g after the previous UBSEDS24 (which used a higher free lift) was lost after a relatively short flight.

Transmissions

The tracker transmits once per minute during launch and when solar power is available. Otherwise it transmits every two minutes, if power is available. At night it may be too cold even for battery operation.

UHF 434.6MHz

Telemetry is transmitted using the error-correcting Contestia 16/1000 mode on 434.635MHz USB.

300 baud RTTY is used for image downlink, except when GMSK is used (see below). These images can be found here. Instructions for configuring dl-fldigi are here.

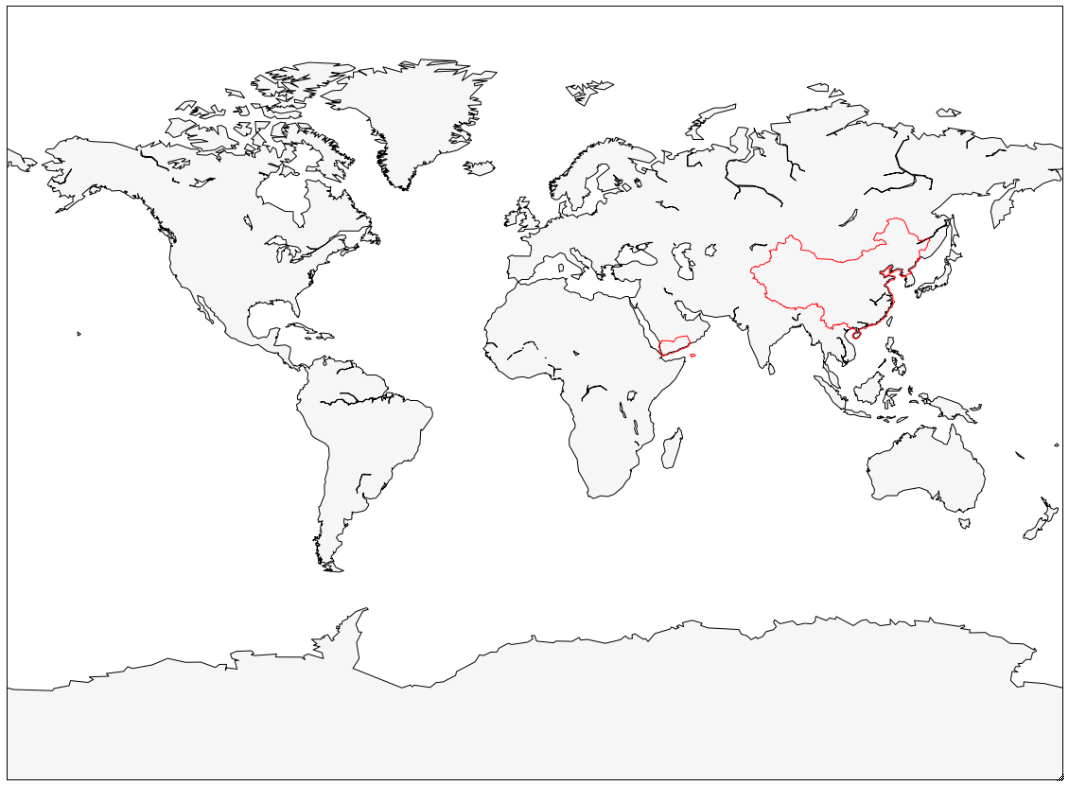

Some countries do not allow UHF ISM band operation. Therefore UHF is only transmitted outside the red lines on the geofence below.

• UHF Geofence image link

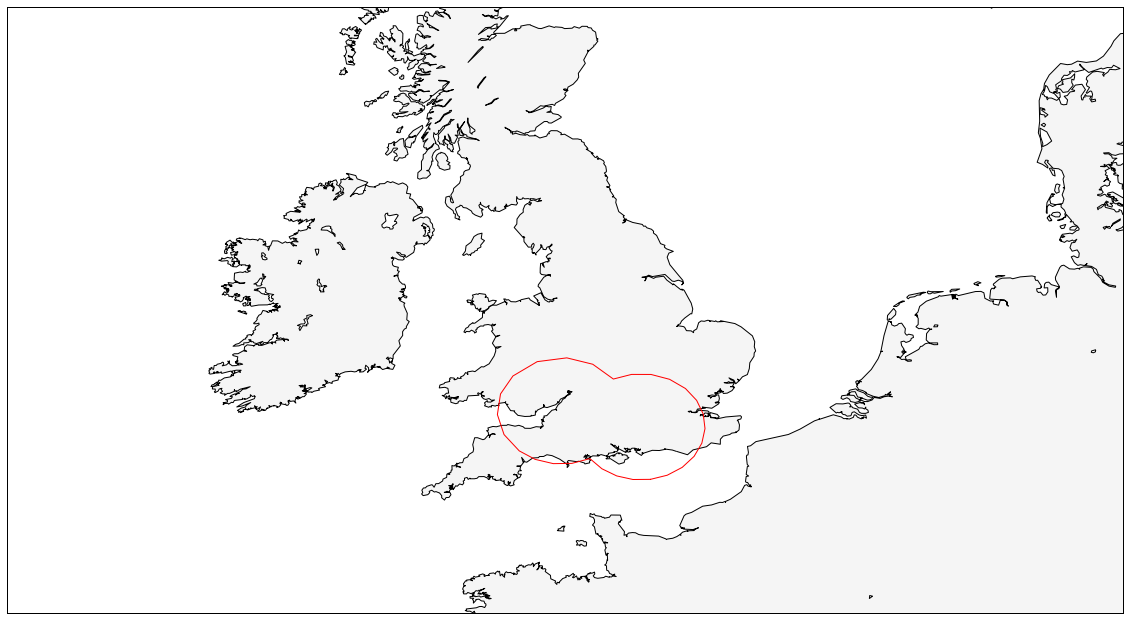

This band is also used for GMSK. GMSK is used to downlink images within the red area on this map. The PER was too high to recover any images.

APRS M0SBU-5 / AD6AM-5

For many countries the balloon transmits APRS packets on local frequencies. In particular this is 144.8MHz in Europe, 144.66MHz in Japan and 144.39MHz in North America.

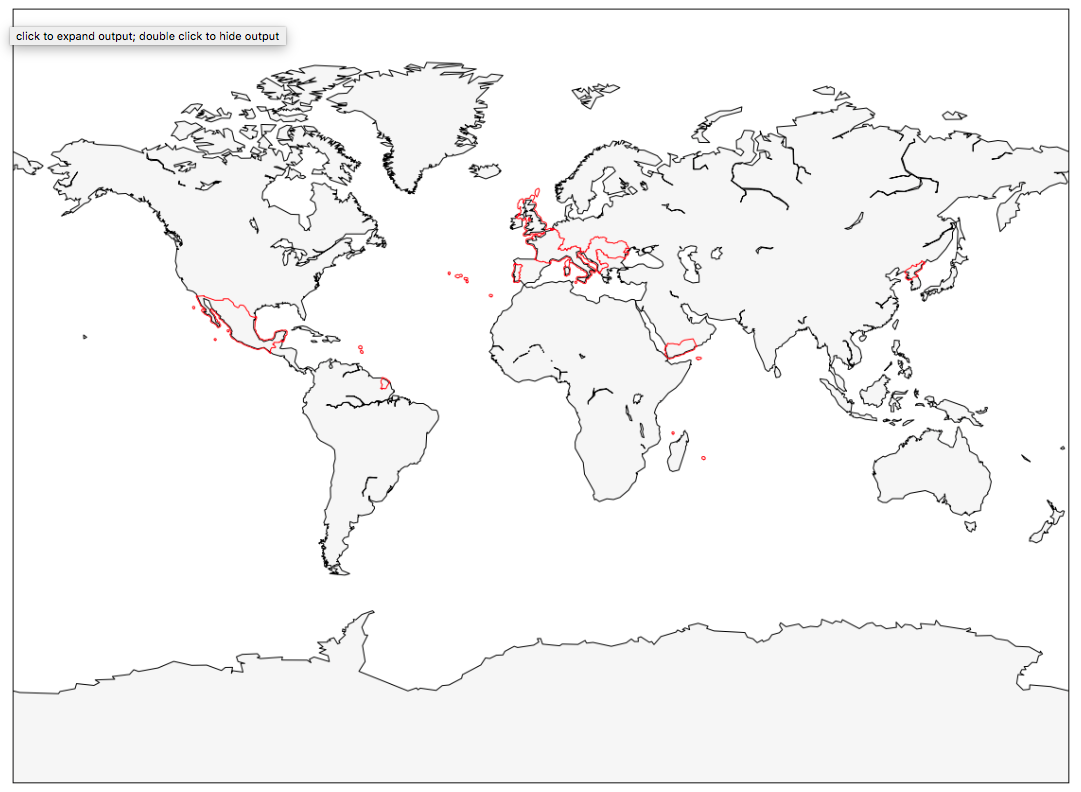

Some countries do not allow aeronautical mobile operation, which limits the balloon from using the amateur bands. Therefore APRS is only transmitted outside the red lines on the geofence below.

• APRS Geofence image link

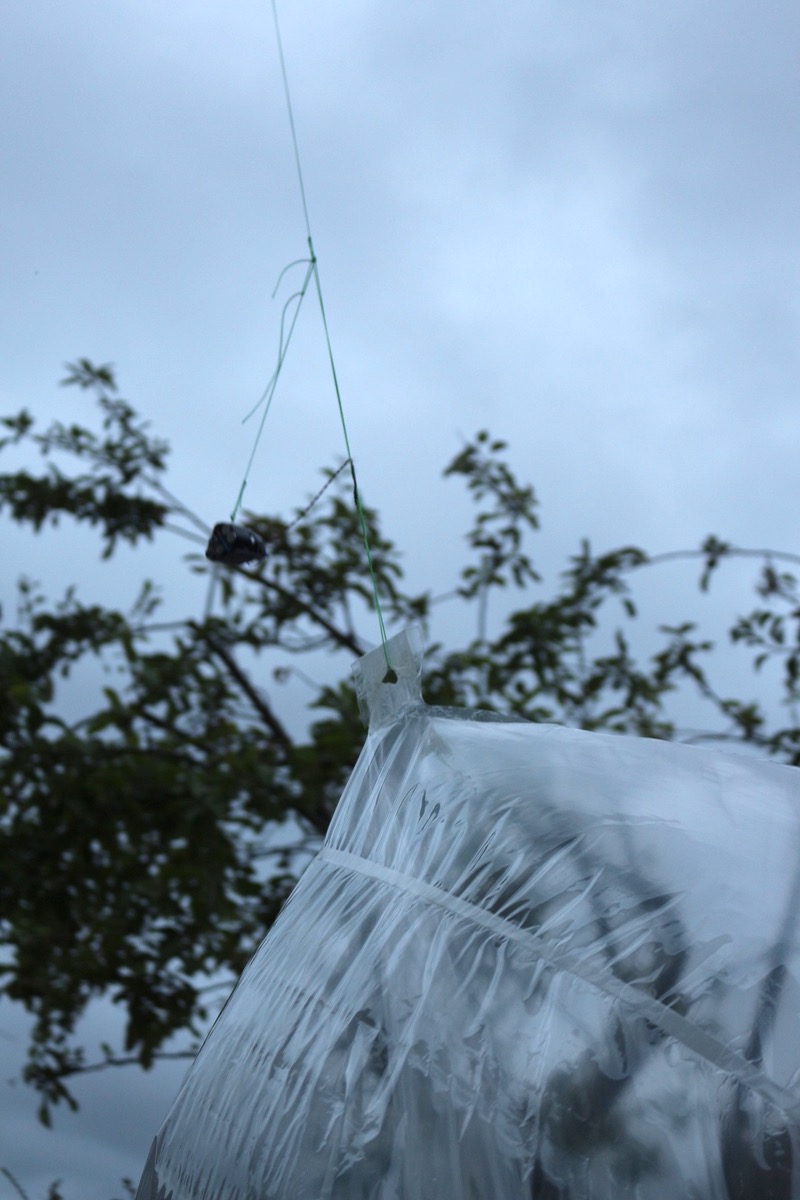

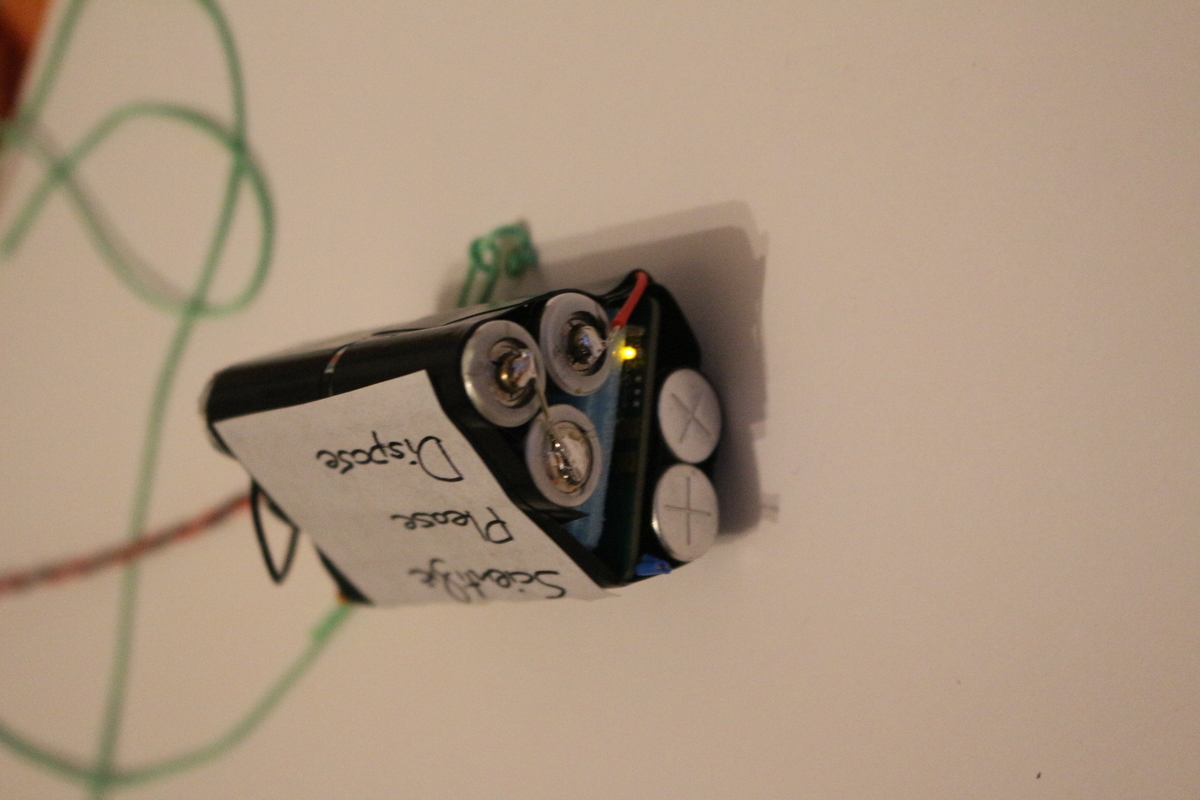

Tow Balloon

Habhub tracker

Statistics

• Total distance traveled: 3174.0km
• Great circle distance: 1887.4km
• Flight duration: 1 day, 15 hours
• Maximum altitude: 13.1km
• Countries passed through:

Plots

Resources

• Geoff G8DHE Images
• HAB Telemetry Visualisation
• KML Flight Map
• KML Flight Map With Images
• Superpressure parameters for this flight
• APRS log file

Listeners

Thank you to all listeners who tracked this flight!

Total: 54

Callsign	Telemetry Lines Received	Longest Path
G8FJG_v	137	425.8km
0x17	133	271.2km
G1BLO	81	396.3km
G8FJG_rtl_azel	76	260.3km
EA1FAQ-3	67
G8KNN	64	387.0km
M0NRD	60	410.4km
EB7GYR-1	44
G8DHE-1	37	349.5km
ED4ZAC-3	37
EA1WS	33
ED7ZAD-3	28
EB1TK-5	28
BACKLOG	27
M0SBU-ax/p	27	23.5km
F6DZR-3	25
M0SBU	21	135.7km
G8FJG_v1	19	328.2km
IW9GTD-11	19
IS0CAP	18
ED2ZAE-5	18
SV3CIX	18	2455.3km
EA4RKU	16
ED1ZAR-3	16
F4GUK	15	445.6km
F5PHW-3	14
F5OPV-10	14
G1DYQ	12	295.6km
F1ZGE-3	11
IS0AML-12	9
ED2ZAD-5	9
ED4ZAF-3	8
EA5AHQ-10	7
EA5URJ-10	7
EA5AHQ-15	6
IH9PFY	6
EA5URV-10	5
CT1ENI-8	4
EA6VQ-15	4
M0ZOS	4	90.9km
CT1AKV	4
CT2IAG	3
IS0CAP-7	3
F5LRQ-3	3
ED1YAP-3	3
G8IMN	2	420.3km
F4FAP	2
F6FDN-3	1
IZ0DCK	1
ED4YAG-3	1
EA7CRT	1
M0BIW	1
F5ZZC-4	1
ED1ZAX-3	1
