UBSEDS21
The UBSEDS21 balloon was built from 50 micron thick PA-EVOH-PE multilayer film and was 1.9 meters in diameter. This size means the longest axis of the balloon and payload combined is more than 2 meters, and so a NOTAM was required and obtained for the launch.

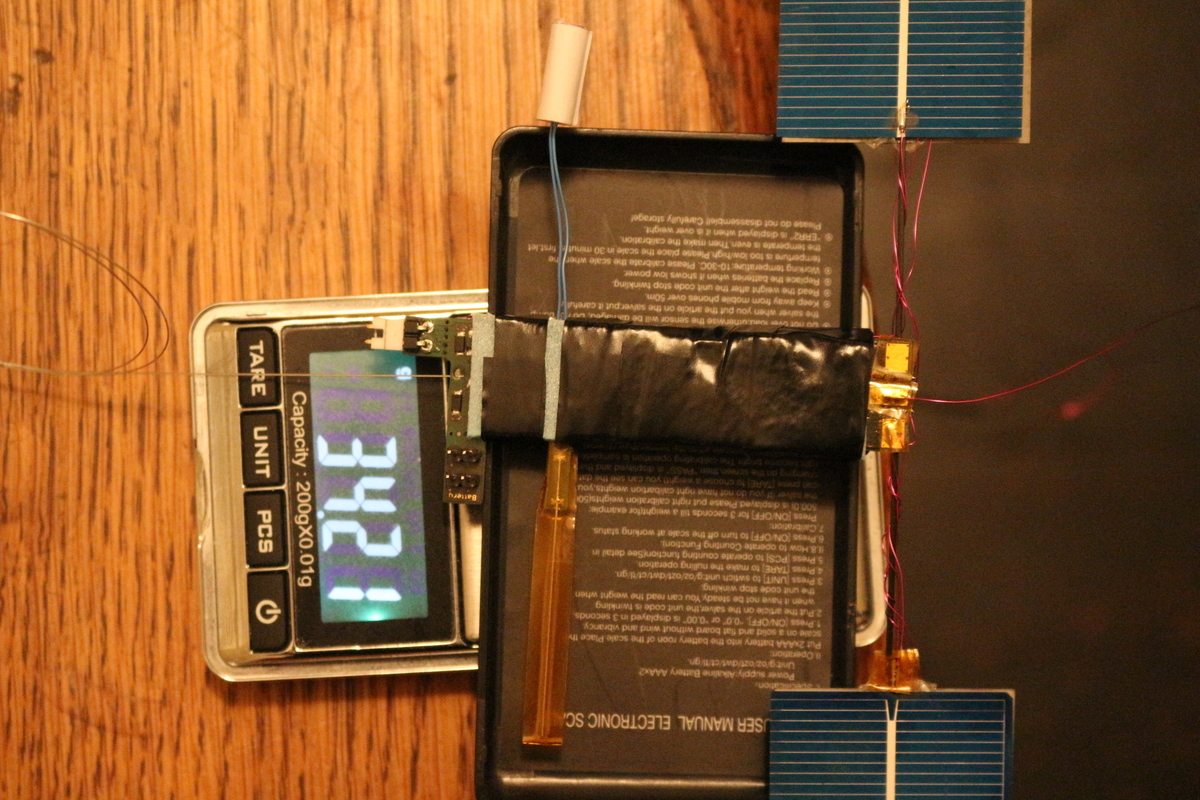

The payload weight was 34.2 grams, and the free lift was 20.2 grams.
The balloon achieved a stable altitude of 15.2 km 4.5 hours into the flight.
Mission
The initial plan was to use UBSEDS21 to contact the International Space Station via APRS on 145.825 MHz. However, the VHF radio on the ISS is out of order (according to some sources, until mid 2018), so this flight is used to test the amplifier and hopefully talk to any APRS enabled satellites.
Solar Panels

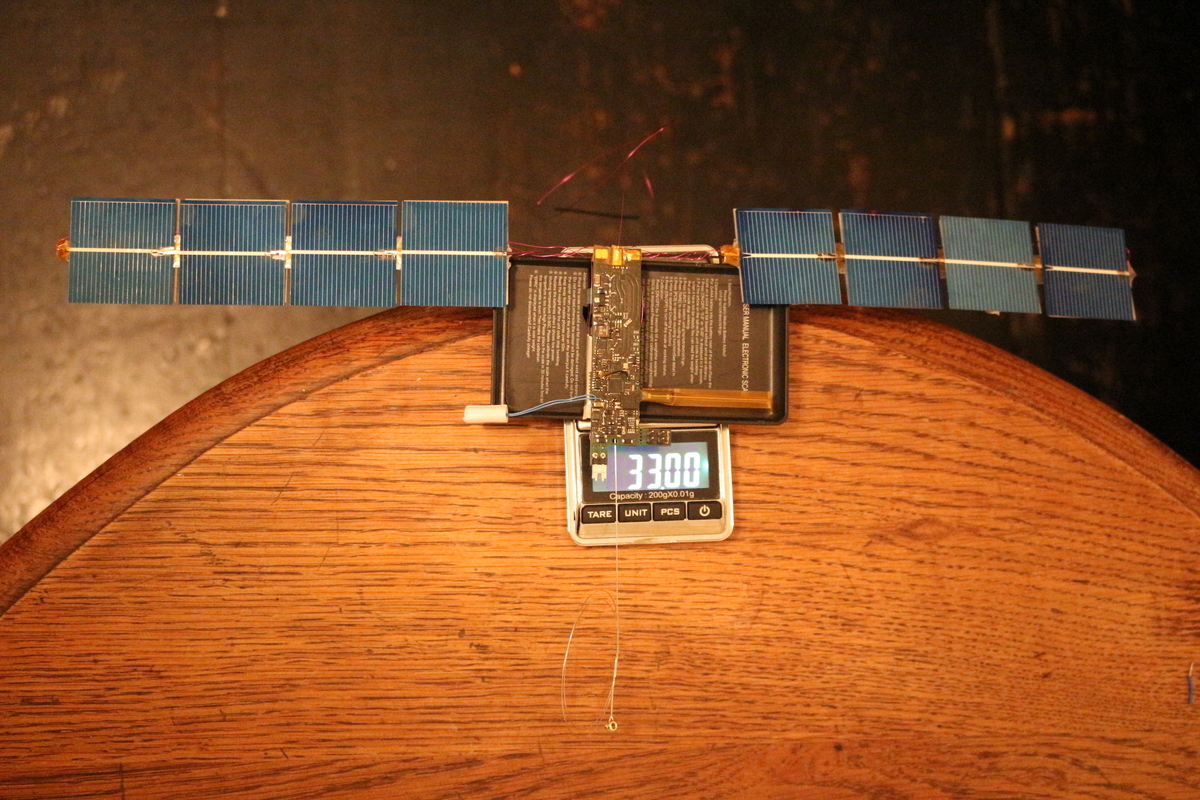

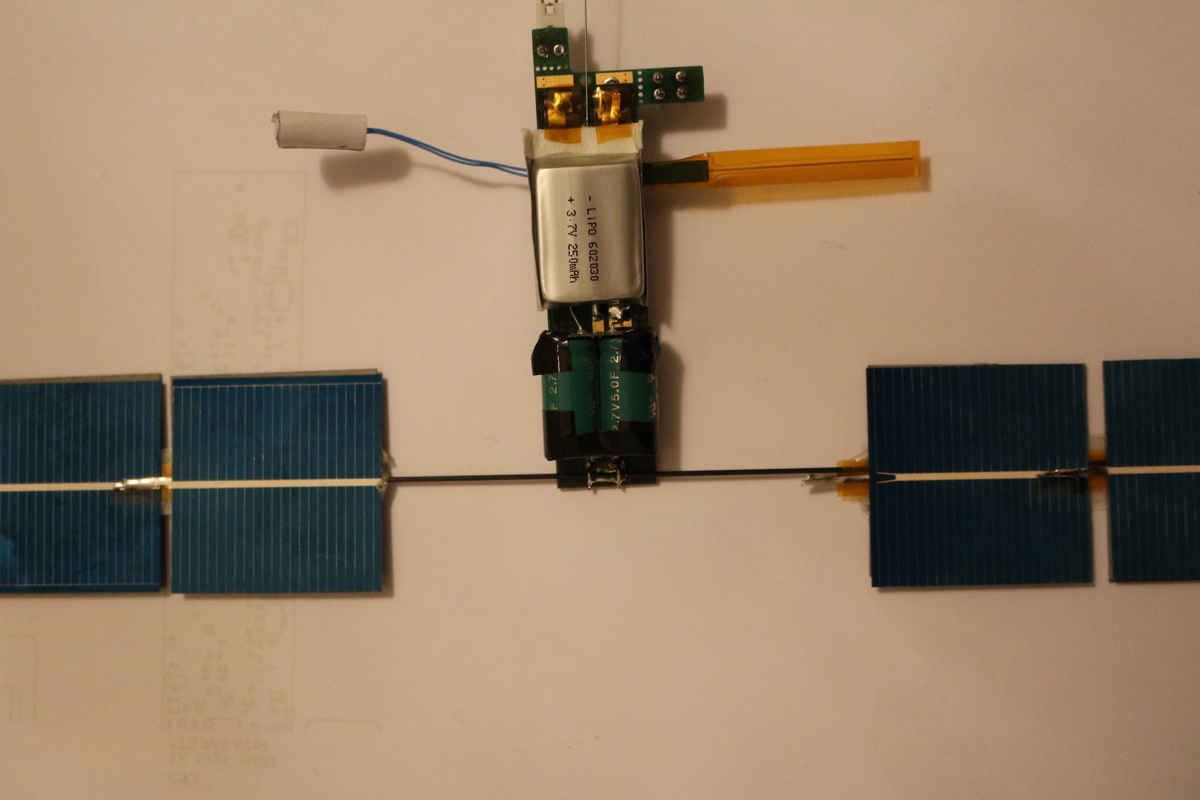

A winter launch meant the payload would need to deal with the sun staying low above the horizon during the day. For this reason, sideways facing solar panels were used.
Envelope
A drawing of the envelope used can be found here. The envelope was pre-stretched, from this calculator it appears the resulting envelope had a gamma ratio of almost 2.2.
Transmissions
The balloon transmits approximately once every 30 seconds during the day, and once every 2 minutes at night. The tracker is able to operate at night when the air temperature is warm enough.
UHF 434.6MHz
It uses the error-correcting Contestia 16/1000 mode on 434.610MHz USB.

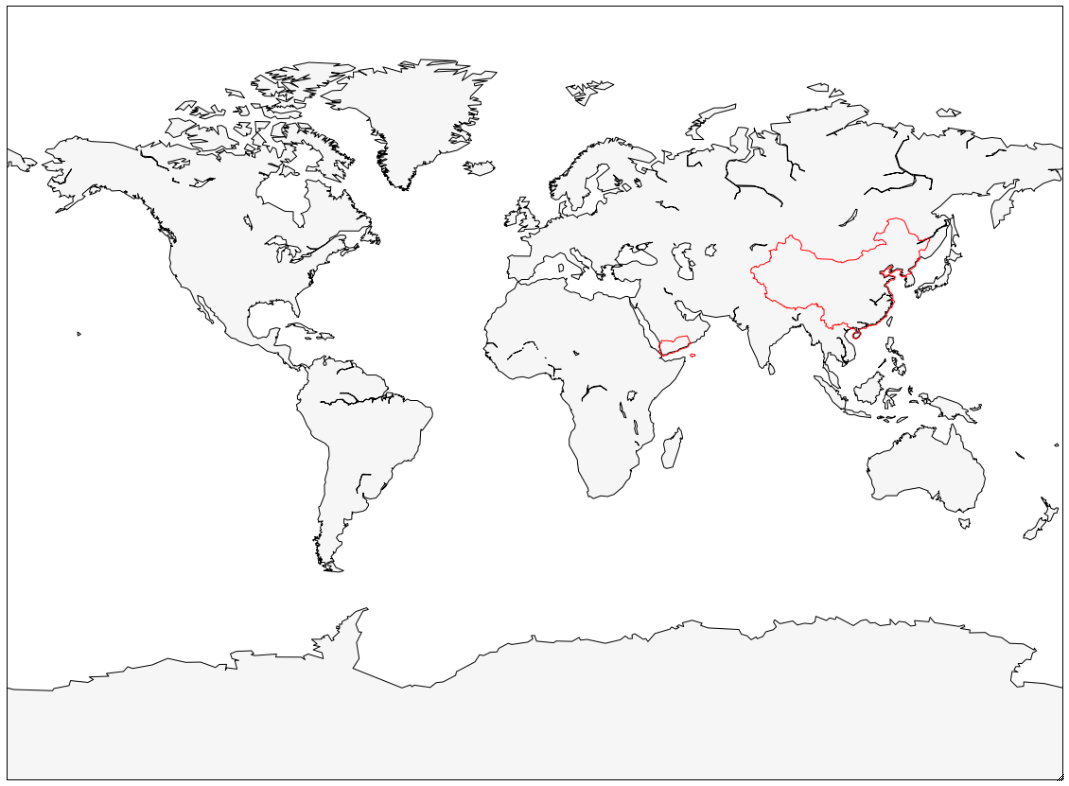

Some countries do not allow UHF ISM band operation. Therefore UHF is only transmitted outside the red lines on the geofence below.
APRS M0SBU-13 / AD6AM-13
For many countries the balloon transmits APRS packets on local frequencies. In particular this is 144.8MHz in Europe, 144.66MHz in Japan and 144.39MHz in North America. The output power for this mode is usually +14dBm.
The balloon also transmits on 145.825MHz for APRS satellites. The output power is +26dBm (400mW). For this mode, one packet is transmitted every two minutes during the day, and once every 8 minutes at night.

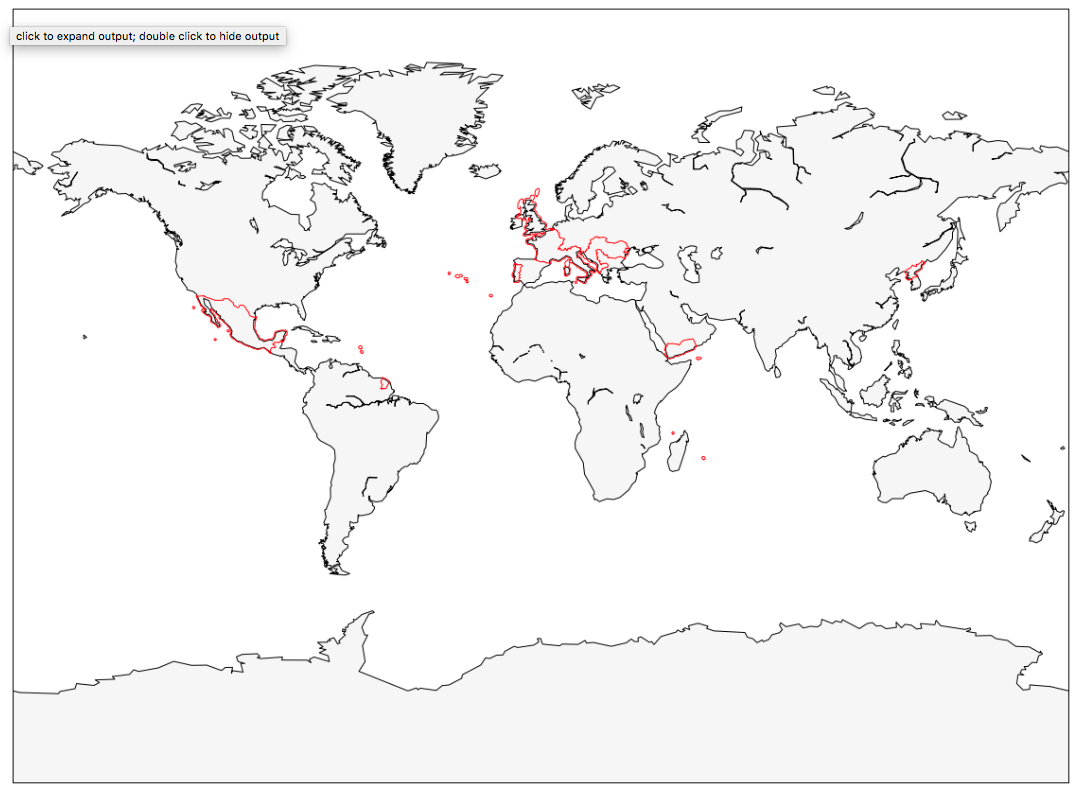

Some countries do not allow aeronautical mobile operation, which limits the balloon from using the amateur bands. Therefore APRS is only transmitted outside the red lines on the geofence below.
Results
16th December 2016
The 145.825MHz beacon was received by JA0CAW during a NO-44 / PCSAT pass. However it appears the digipeater on NO-44 was not active at the time. JA0CAW blog.
Map
Statistics
- Total distance traveled:
192776.4km - Great circle distance:
3042.5km - Flight duration:
109 days, 13 hours - Maximum altitude:
15.9km - Countries passed through:
Plots
Resources
- Geoff G8DHE Images
- HAB Telemetry Visualisation
- KML Flight Map
- Superpressure parameters for this flight
- APRS log file
Listeners
Thank you to all listeners who tracked this flight!
Total: 609
