The UBSEDS20 balloon was built from 50 micron thick PA-EVOH-PE multilayer film and was 1.9 meters in diameter. This is 0.4m more than the usual 1.5m diameter. The larger size meant the longest axis of the balloon and payload combined was more than 2 meters, and so a NOTAM was required and obtained for the launch.

The balloon carried two payloads. UBSEDS19 was the backup tracker (mass 13 grams), and UBSEDS20 was the main Raspberry Pi Zero payload (mass 62 grams). The free lift was about 25 grams.

The initial float altiude was 12.5km. The total payload weight was of 75 grams.

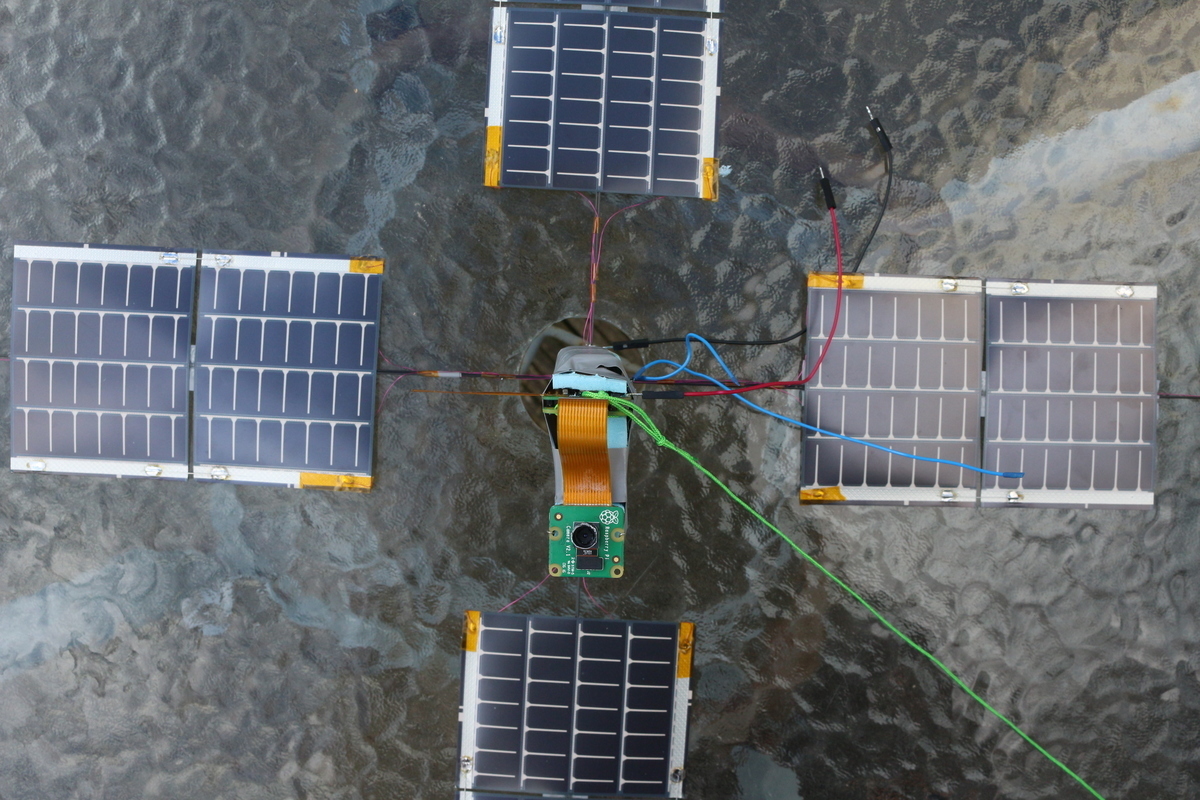

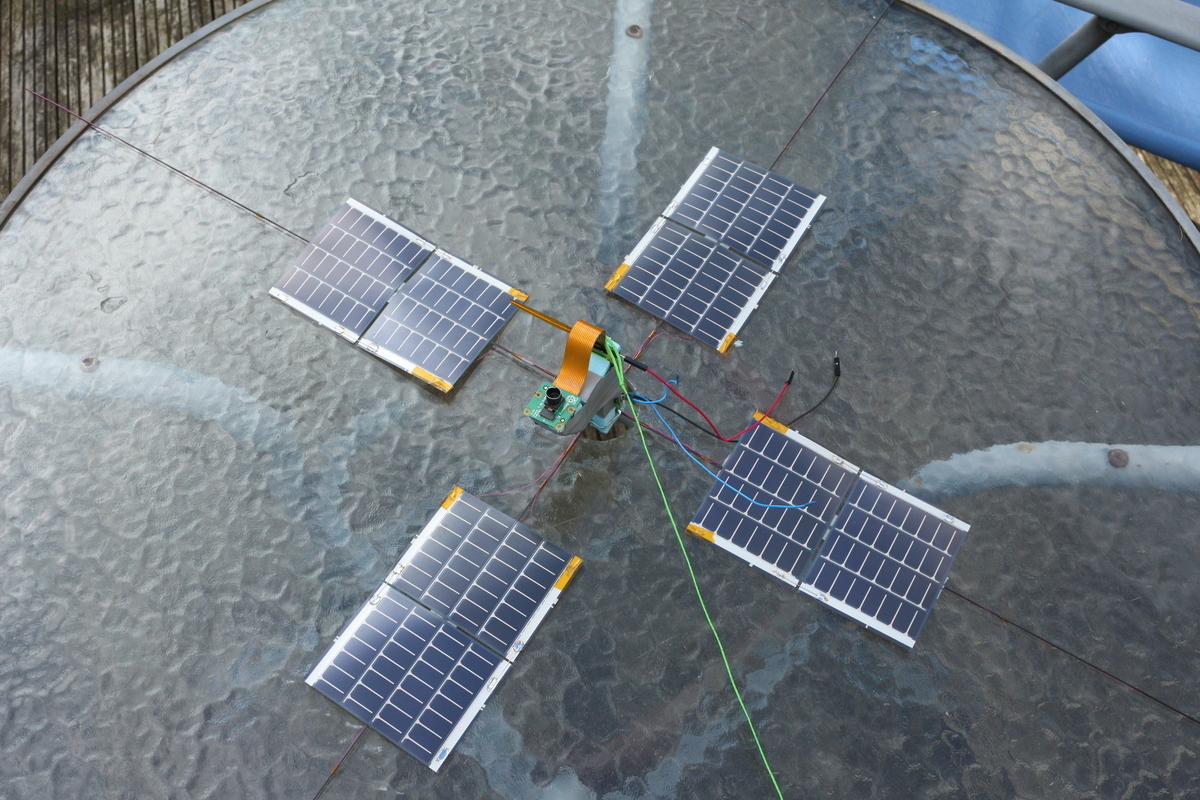

Tracker

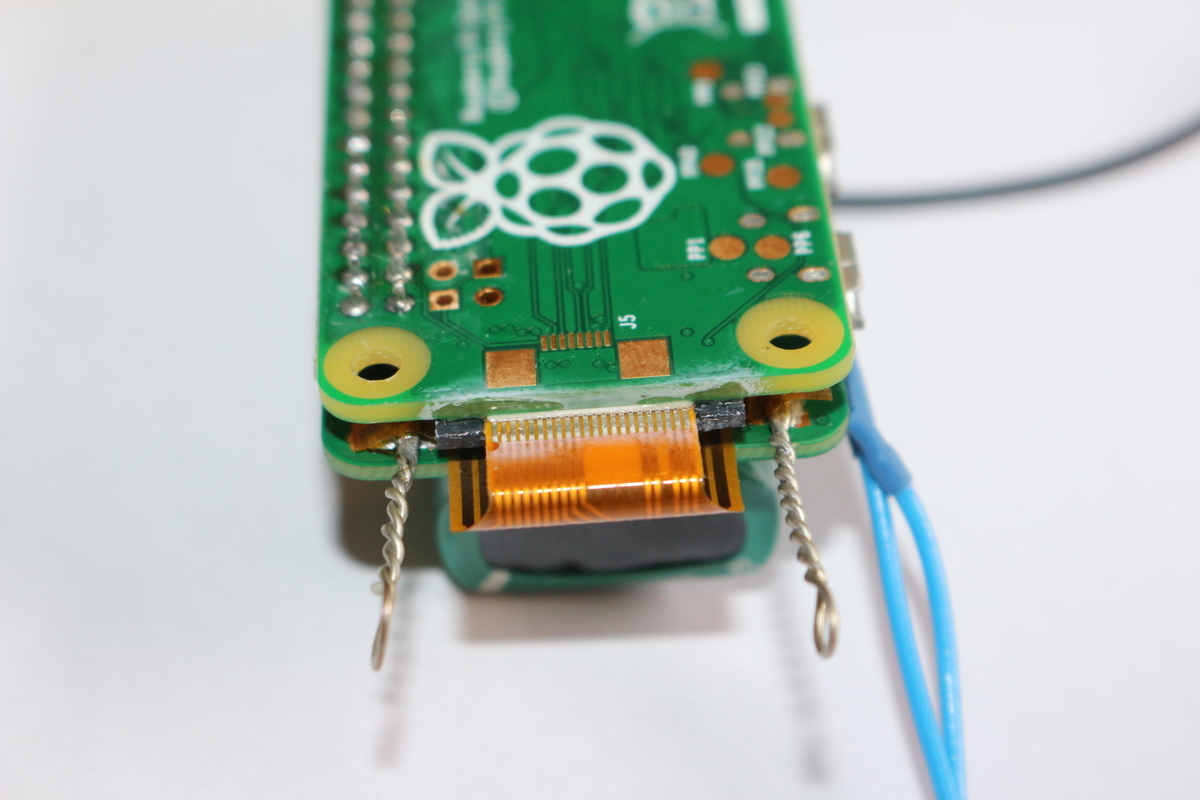

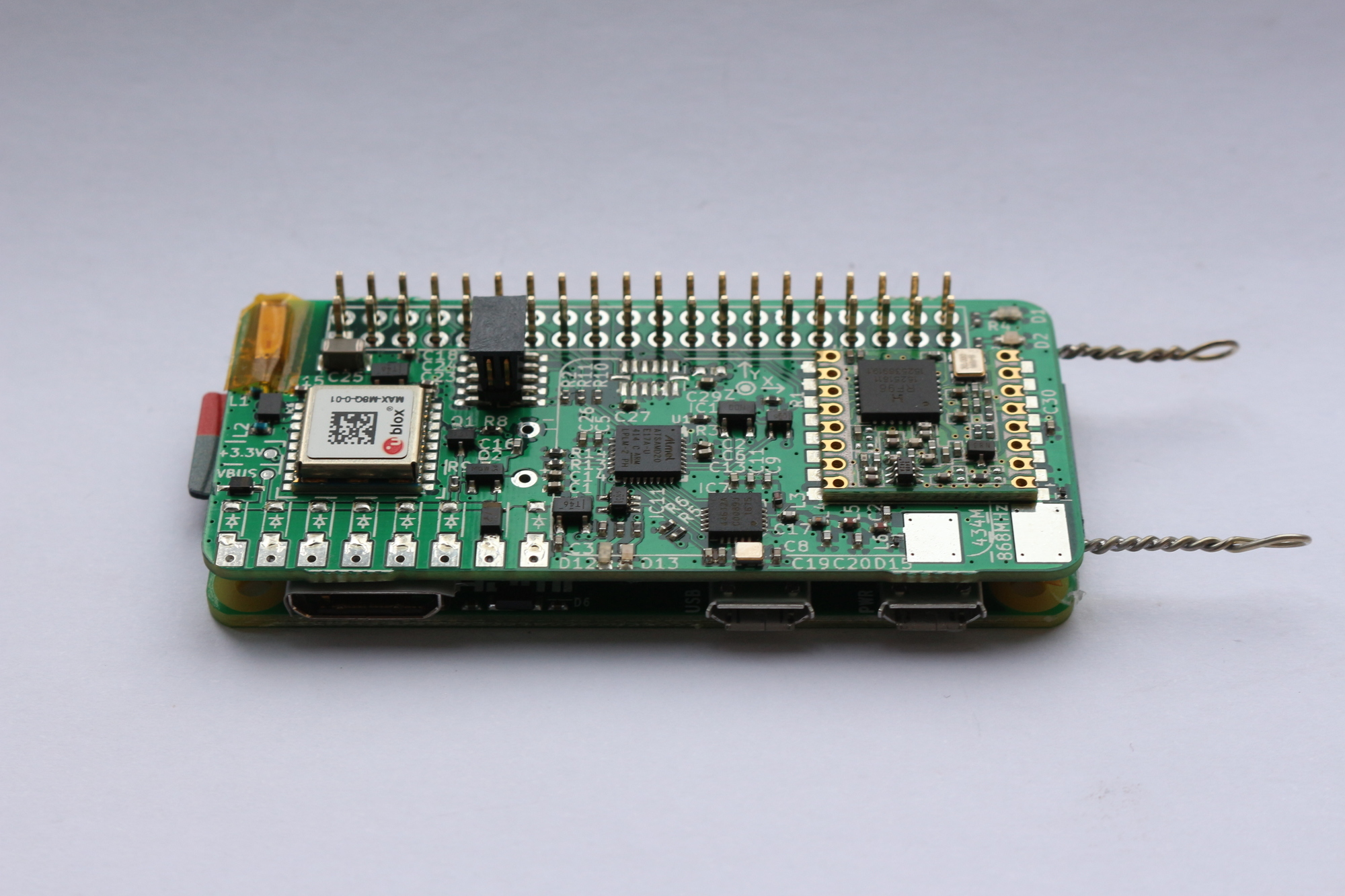

This was the first test of our pico-pi board.

Backup Tracker

The UBSEDS19 backup tracker was powered from a single AAA Lithium Energiser battery. It transmitted Contestia 16/1000 with pips and RSID on 434.615 MHz USB, once per minute below 8km altitude and every two minutes otherwise.

The board is the same design as UBSEDS13 and UBSEDS14 - except configured for a faster update rate and using a AAA battery.

Images

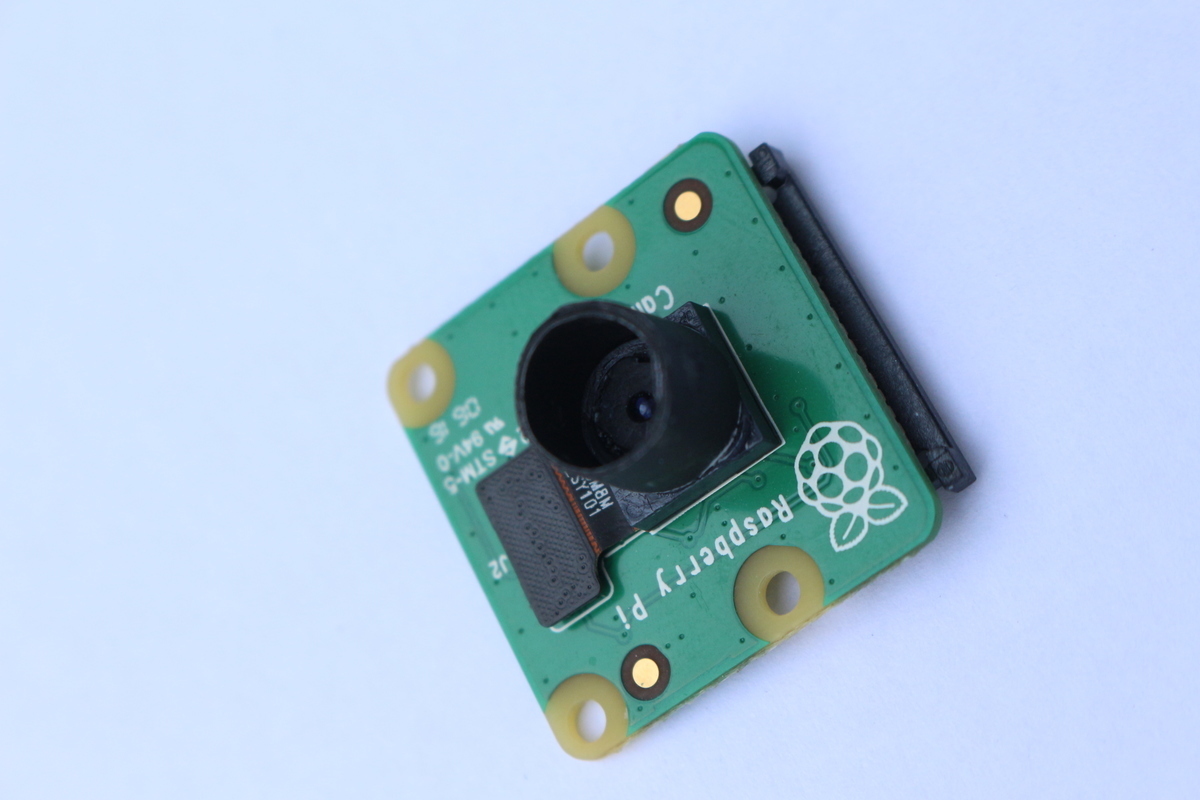

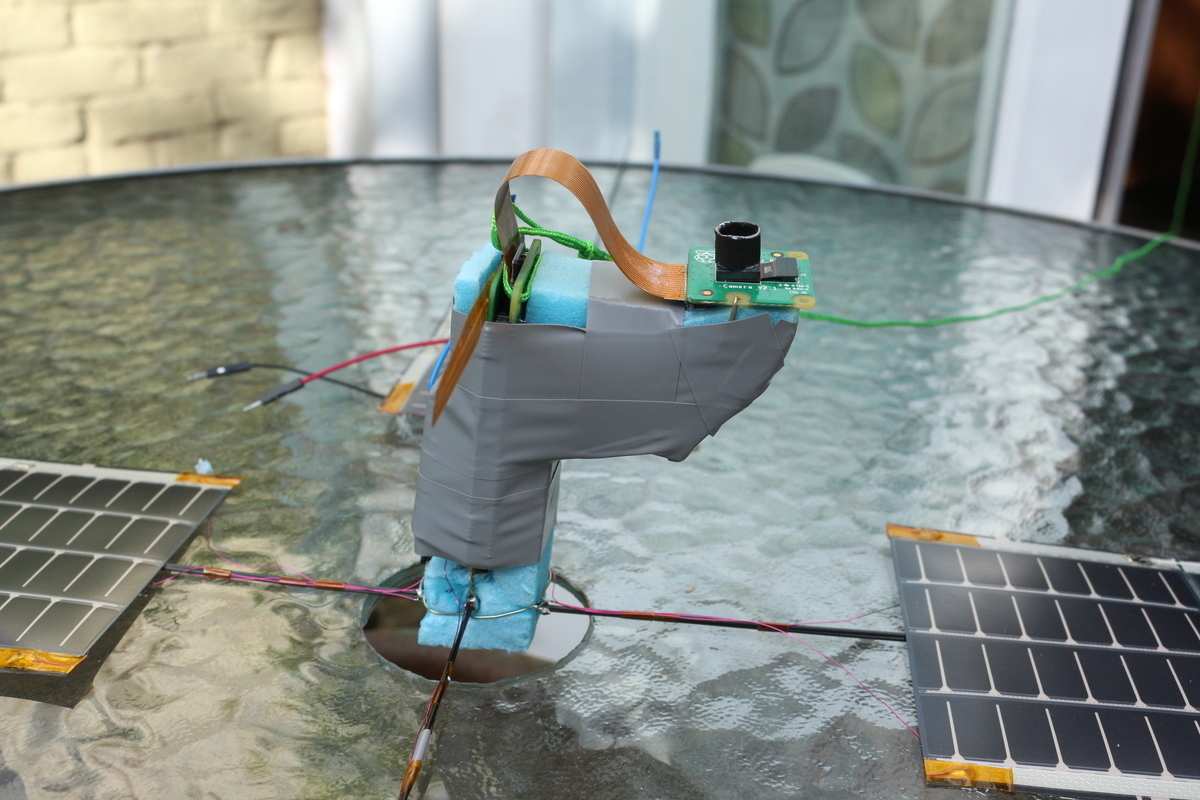

The Raspbery Pi Camera (Sony IMX219) captured images of the envelope during flight.

Envelope

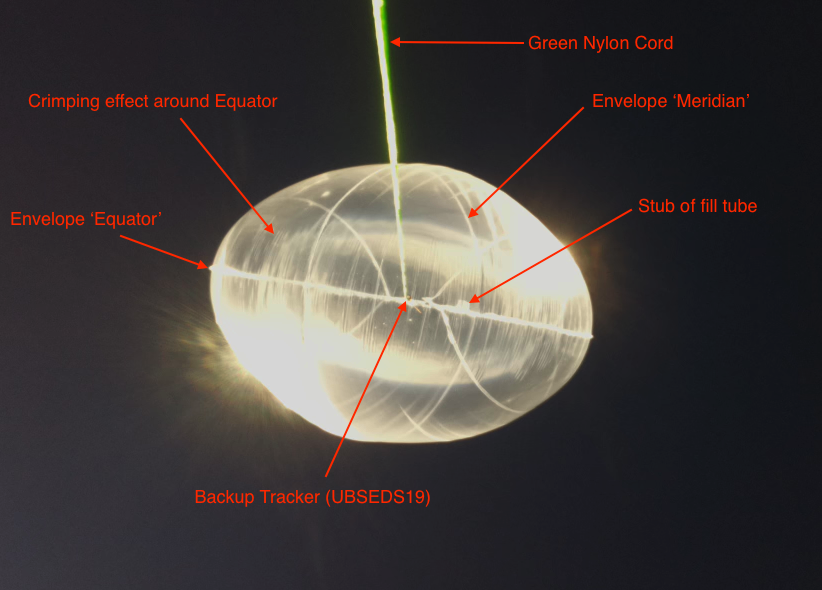

Annotated image of envelope

Map

A map of the images taken by this flight can be found HERE!

Statistics

Total distance traveled: 6421.6km
Great circle distance: 4140.8km
Flight duration: 4 days, 6 hours
Maximum altitude: 12.9km
Countries passed through:

Plots

Resources

Listeners

Thank you to all listeners who tracked this flight!

Total: 143
